Aircraft & Helicopter Engine
Product Line
Top Flite Zero Build - YouTube


PUH Heli Engines Available in

230 240 260 270 300

RC Style Available in

230 240 260 270 300


More Engines are listed on the Parts List page - Click Here to View

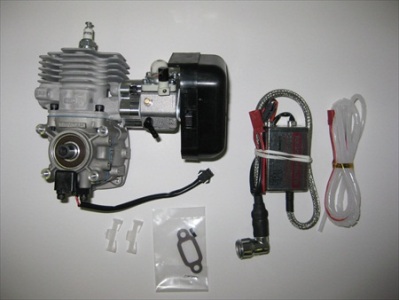

G200PU 3D Max



G200 PU 3D Max - Comes as shown. modifications include modified cylinder, lightened piston, trued and balanced crank, big bore Carburetor, metal Carburetor block with Teflon gaskets, improved ignition system. Zenoah air cleaner with choke. smooth and powerful Zenoah.  Approximately 20% more power then a stock G200.

$495

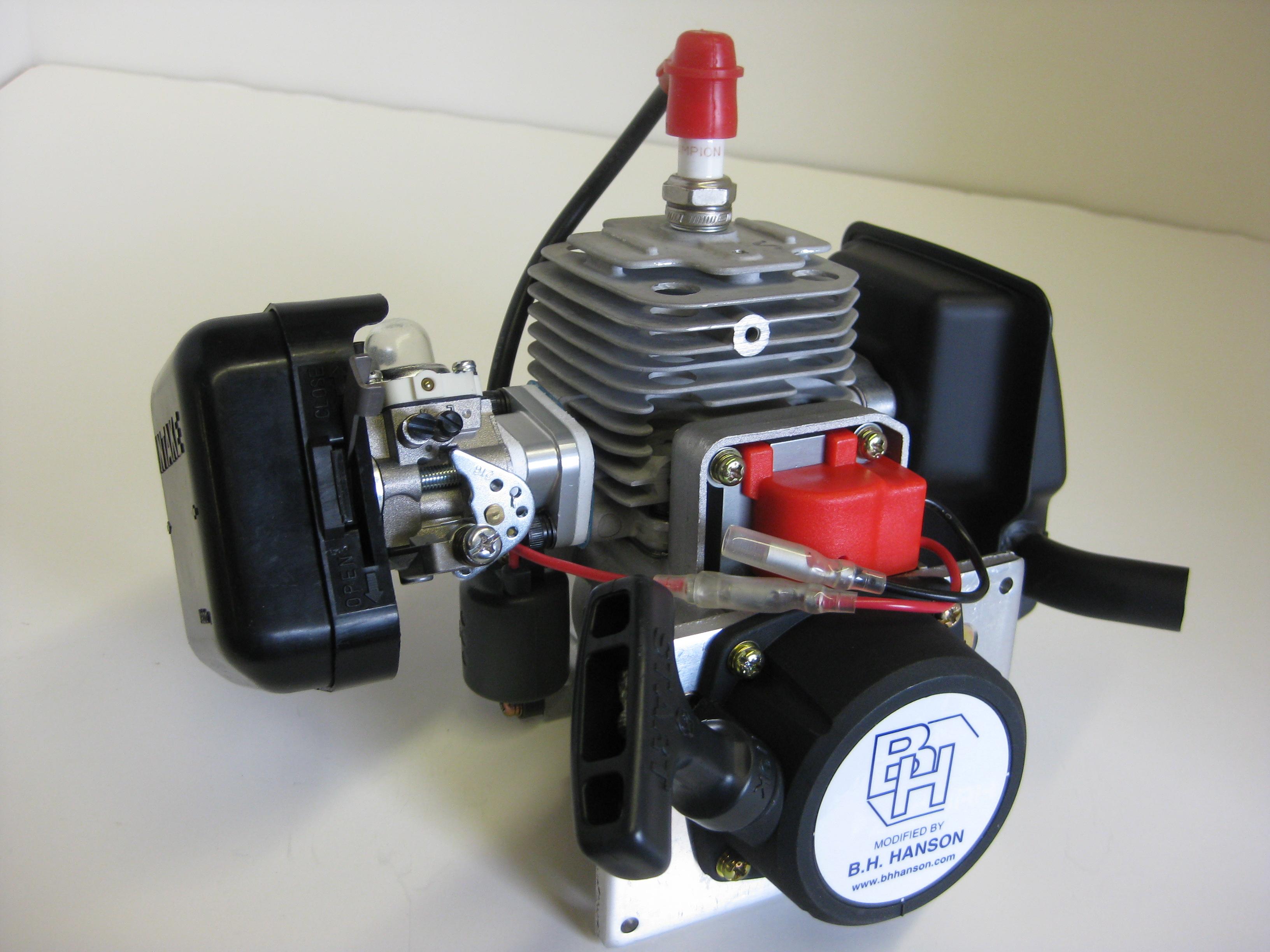

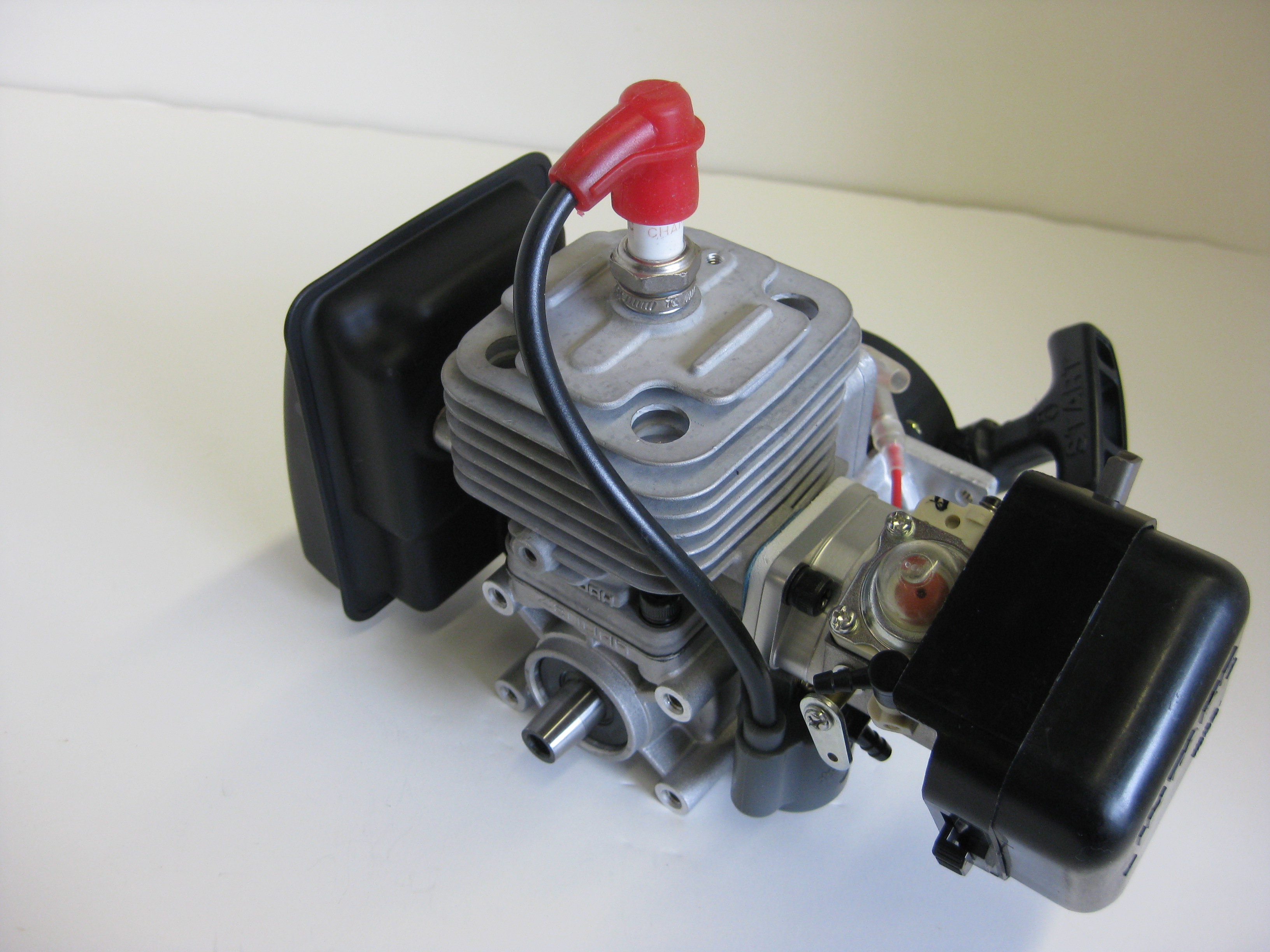

Zenoah PUH Heli Engines

260 PUH Pro - 643 pump bulb Carburetor, lightened piston, balanced flywheel and blue printed cylinder, air filter, muffler. $395
260 PUH Pro Plus - 643 pump bulb Carburetor, lightened piston, trued and balanced crankshaft and flywheel for smooth running, blue printed cylinder, metal isolator block, air filter, muffler. $425
260 PUH 3D-Max -  643 pump bulb Carburetor, metal isolator block, hi compression cylinder with exhaust and transfer modification, lightened piston, trued and balanced crankshaft and flywheel for smooth running, air filter, muffler. $465
270 PUH 3D Max - 990 pump bulb Carburetor, metal isolator block, 1mm stroker crank with modified cylinder  lightened piston, trued and balanced crankshaft and flywheel for smooth running, air filter, no muffler. $470

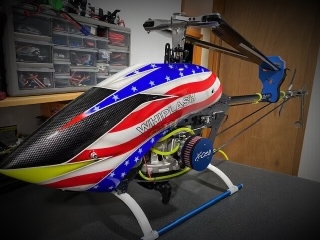

300 PUH 3D Max - Our most powerful PUH Heli engine. 29.5 cc using Zenoah 36mm modified cylinder 1mm stroker crank, pump bulb 643 Carburetor, trued and balanced crankshaft and flywheel for smooth running ,transfer port modifications, lightened piston, metal isolator block, air filter, muffler. smooth and powerful using modification techniques as in the 300 RC Max. $545


Zenoah RC Heli Engines

These engines were developed for the Whiplash Heli and will work in any other model using an RC conversion kit designed for the Zenoah RC engine. Zenoah clutch sets are included at no additional charge upon request.
270 RC Pro Plus - 990 pump bulb Carburetor, lightened piston, trued and balanced crankshaft and flywheel for smooth running, blue printed cylinder, metal isolator block, air filter, muffler. $430

270 RC 3D Max -  25.4cc, 990 pump ball Carburetor, trued and balanced crankshaft and flywheel , lightened piston ,metal isolator block ,modified cylinder with transfer port, exhaust and other adjustments to give smooth and powerful operation, air filter, muffler, trued clutch shoes upon request for whiplash use.

$485

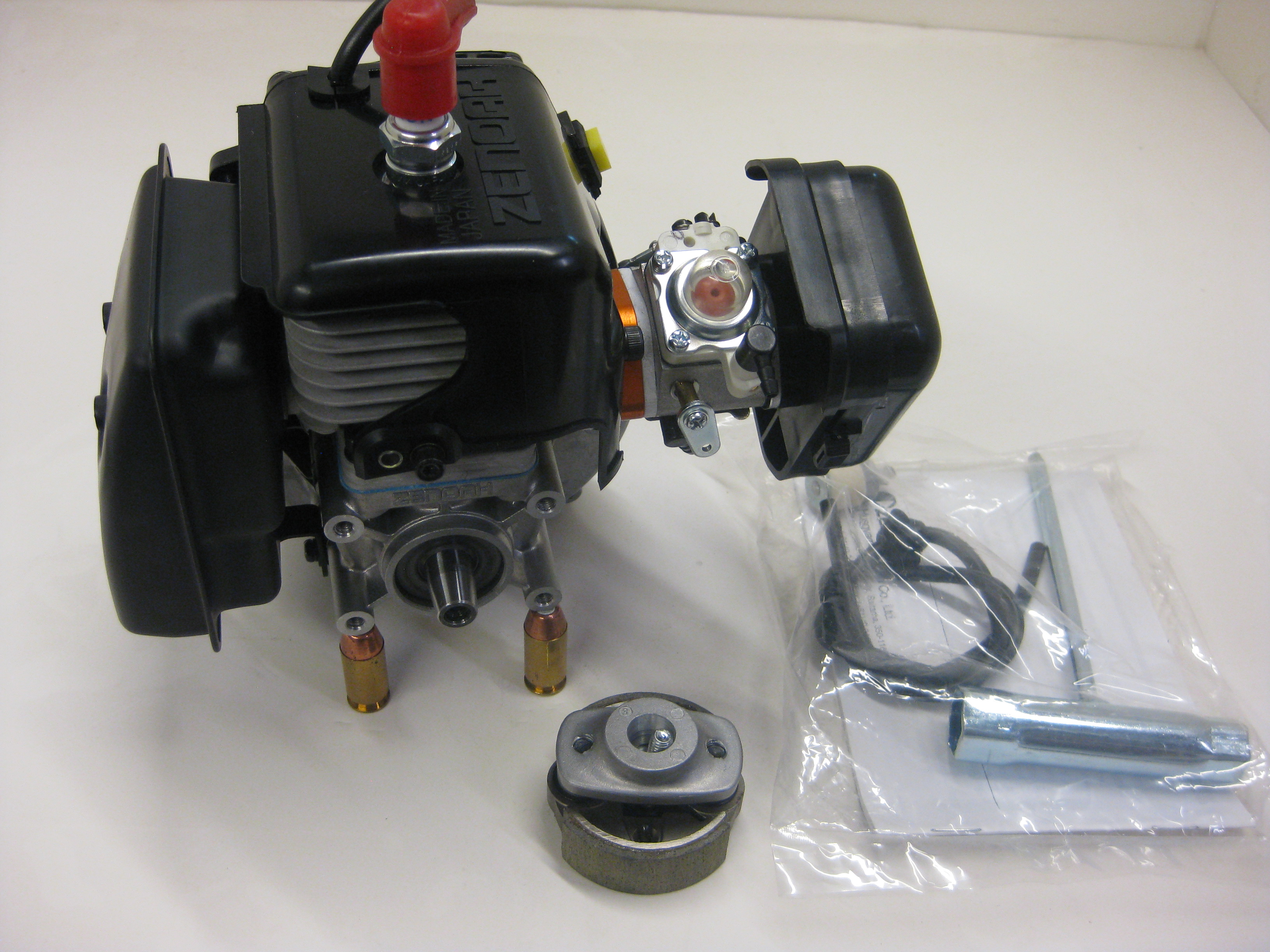

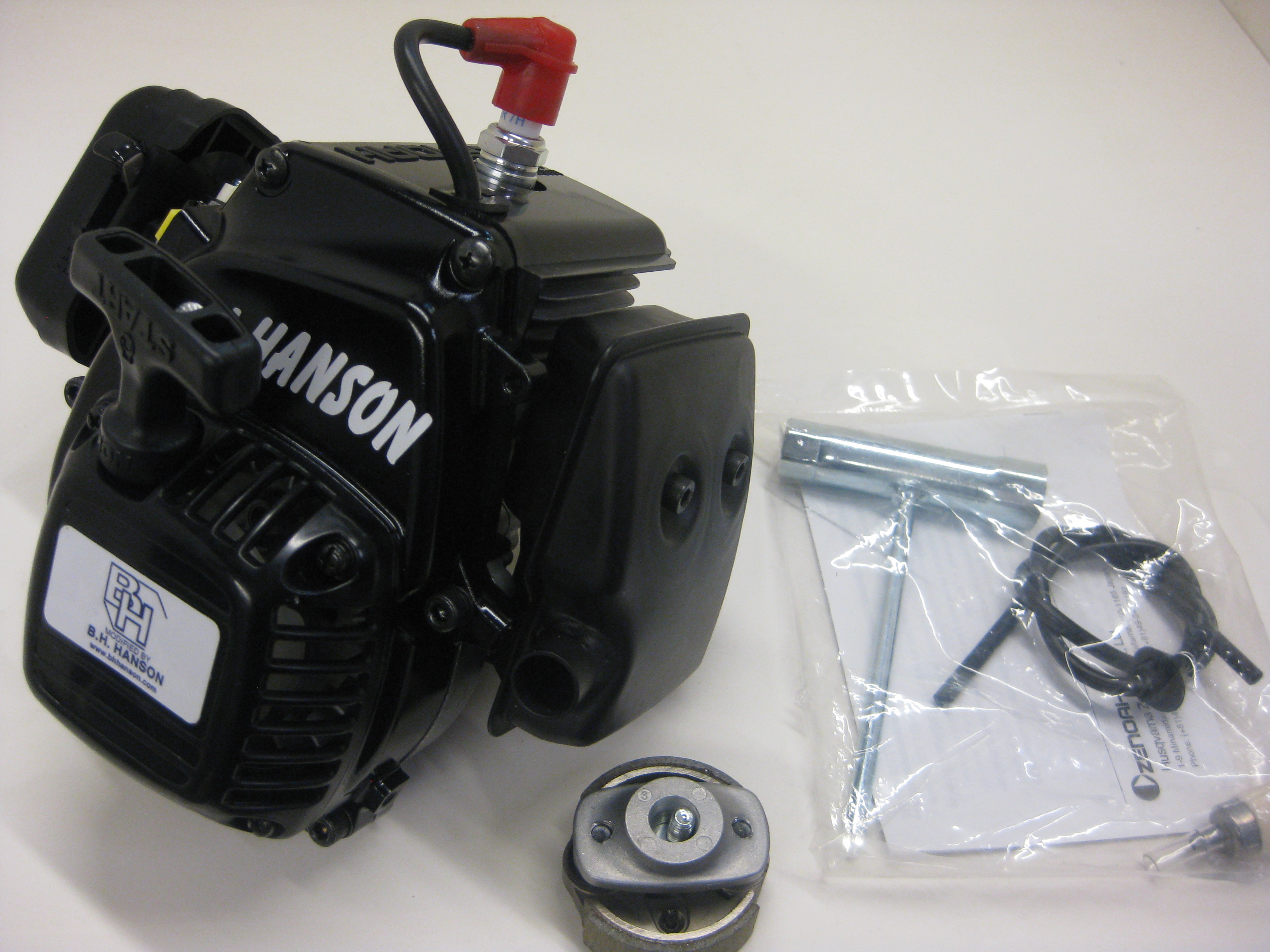

300 RC 3D Max - 29.5 cc using Zenoah 36mm modified cylinder, upgraded cylinder gasket set,1mm stroker crank, pump bulb 990 Carburetor, trued and balanced crankshaft and flywheel for smooth running ,transfer port modifications, lightened piston, metal isolator block, faced off clutch shoe mount, weight matched clutch shoes within .3 grams or better, special  crankshaft seal air filter, and muffler. smooth and powerful operation. $545

Aircraft Engines by R.C. Ignition


Our Zenoah Aircraft engines are modified to give you a trouble free, light weight engine with easy starting abilities. All engines feature an efficient electronic ignition with a lifetime warranty from RC Ignition that will run for about two hours on a 4.8 or 6 volt 600 M.A. battery pack. Engine performance is enhanced with the removal of excess crankshaft weight and modified spark curve. Included on our engines is a special prop hub that is stronger then the factory supplied propeller hub and a rotated Carburetor on a custom intake manifold for a straight pull linkage. Hand starting is easy with a hot spark at 1 RPM ! All engines are custom made, pre run and adjusted for trouble free use. While we keep these engines in stock there may a two week wait for delivery depending on demand.

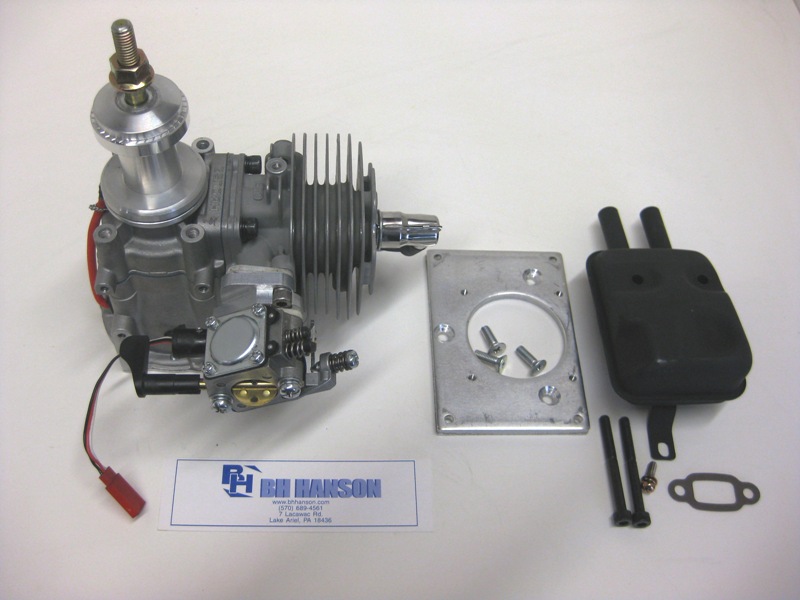

G260PU EI
G260 PU EI  Our 260 SPU weighs about 2.5 lbs and makes 17 lbs of thrust with a Mejzlik 18-6 prop. RPM is 9000 with no muffler and 8200 with muffler. Engine is supplied as pictured along with firewall mount, factory muffler, manual and plug wrench.

$425

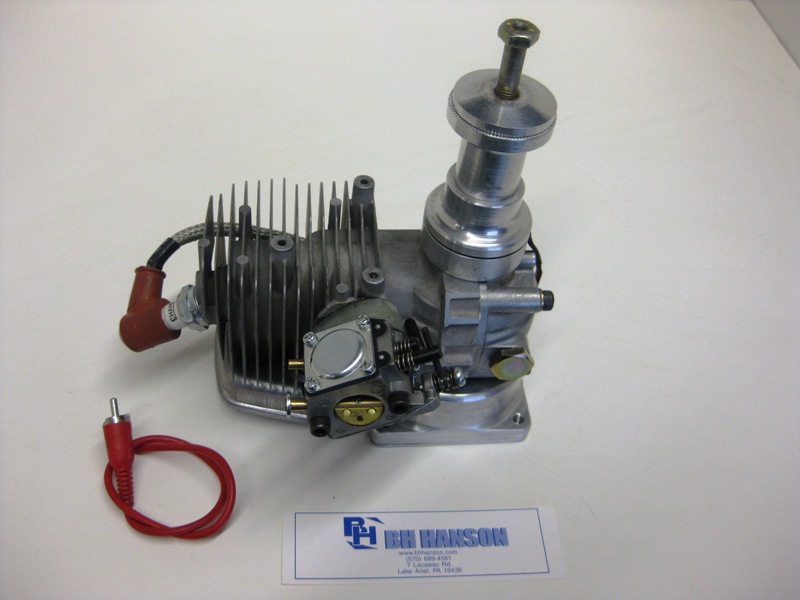

G380PU EI

G38 PU EI Our G38 SPU weighs in at 3.5 lbs. Best performance is with a 20-8 or 18-10 prop. Spark retard is ignition module controlled for easy starting. Engine is supplied with a factory muffler, billet firewall mount and prop hub, factory manual and plug wrench.

$475

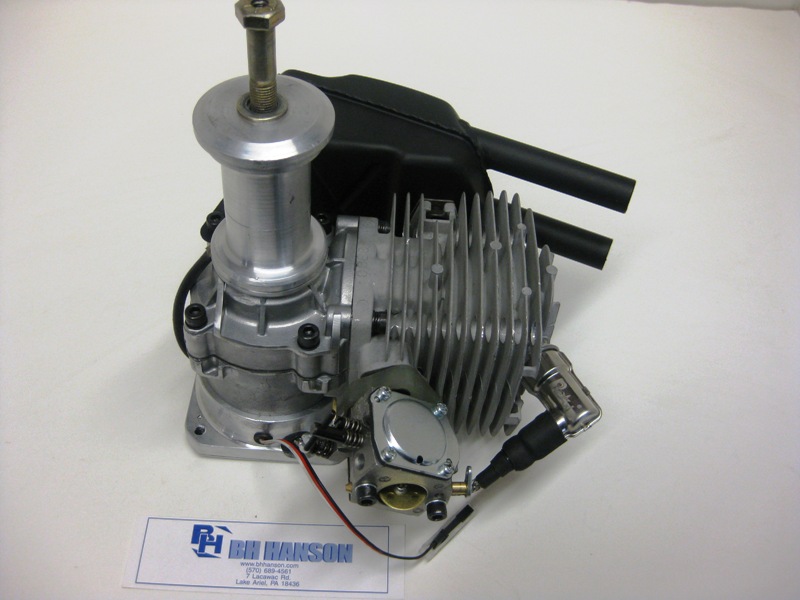

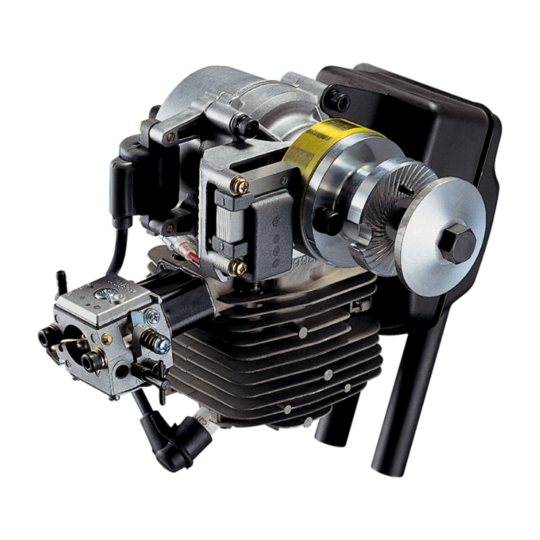

G620PU EI
G62 PU EI  Our G62 SPU is trimmed and lightened to just over 4 lbs. This powerhouse turns a 22-10 prop 7000 RPM and makes 28 lbs of thrust. Engine is supplied as pictured with a billet firewall mount and prop hub, factory muffler, manual and plug wrench.

$525


Zenoah Aircraft Engines - The Best For Less

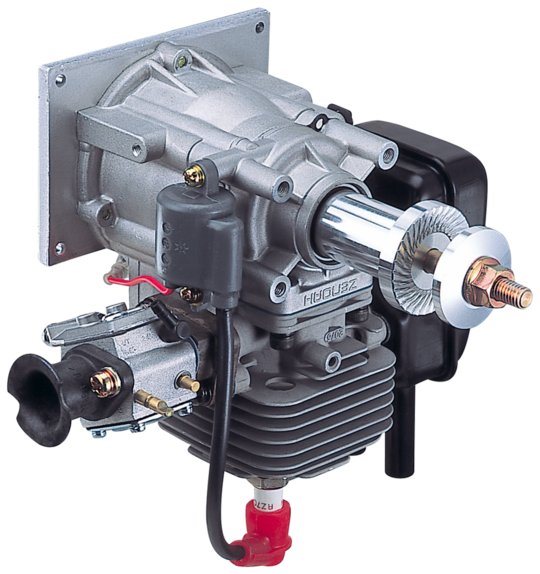

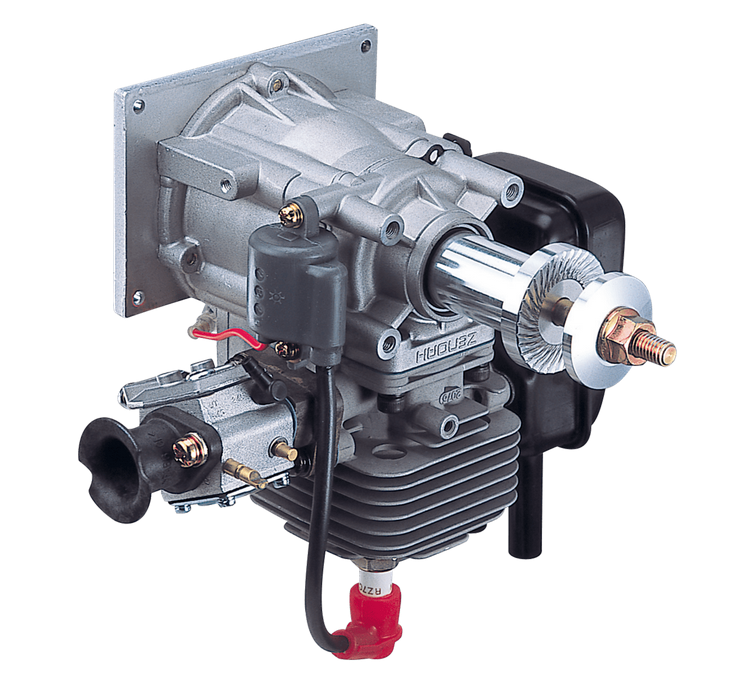

G260 PU

$289

Cylinder displacement 25.4 cm³
Cylinder bore 34 mm
Cylinder stroke 28 mm
Start system Recoil starter
Spark plug Champion RZ7C
Carburetor WT-643
Power output 2.17 hp

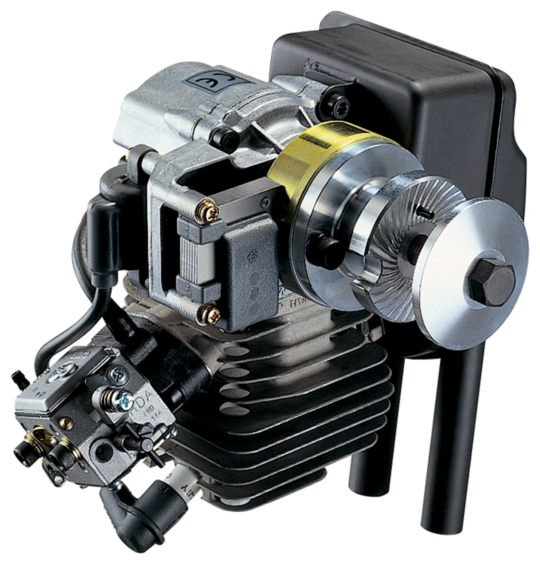

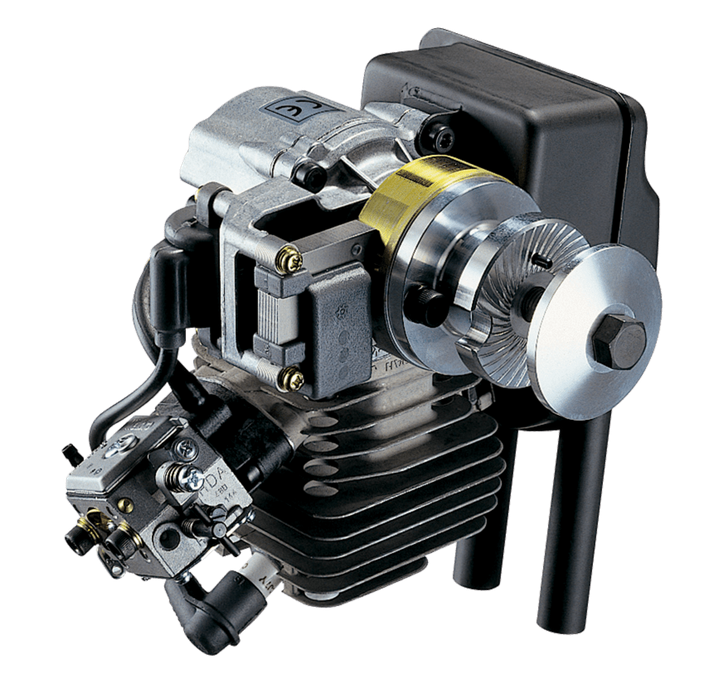

G450 PU

$345

Cylinder displacement displacement 45 cm³
Cylinder bore 43 mm
Cylinder stroke 31 mm
Spark plug Champion RCJ7Y
Carburetor HDA48D
Power output 2.96 hp

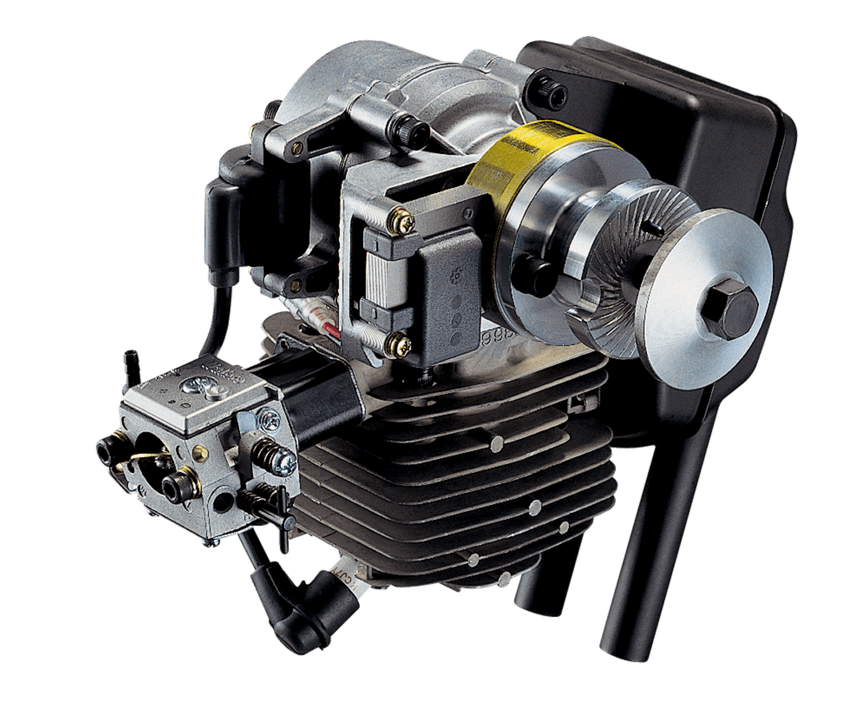

G620 PU

$380

Cylinder displacement displacement 62 cm³
Cylinder bore 47.5 mm
Cylinder stroke 35 mm
Spark plug Champion RCJ7Y
Carburetor HDA48D
Power output 4.22 hp

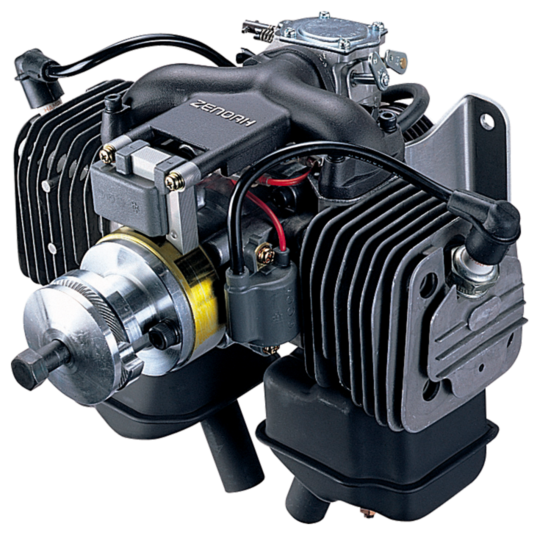

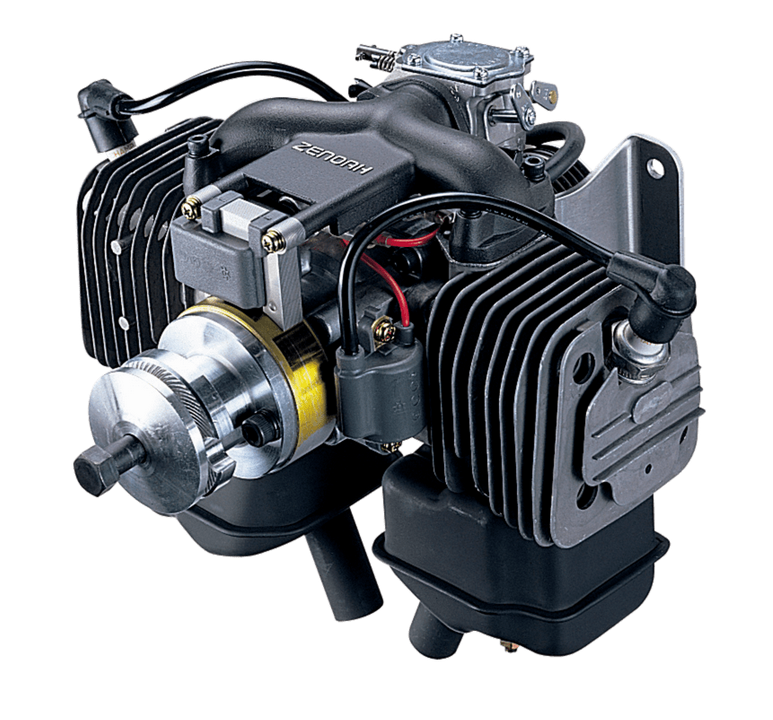

GT800-BPU

$699

Cylinder displacement displacement 79.9 cm³
Cylinder bore 40.5 mm
Cylinder stroke 31 mm
Spark plug Champion RCJ7Y
Carburetor WJ-64

Power output 5.82 HP

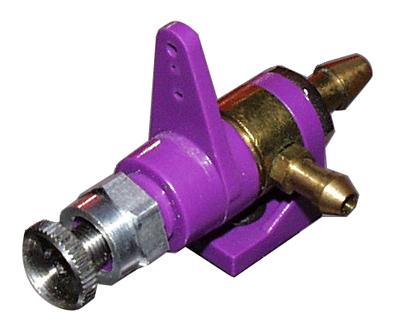

BVM Fuel Mixture Control

Designed and manufactured by Bob Violett Models, and reproduced by Stu Barr, this servo operated Mixture Control is made to extremely tight tolerances to provide the most accurate fuel delivery with excellent long-wear characteristics.

The BVM/Stu Barr Mixture Control works well with 2 or 4 cycle engines, and it will easily pay for itself by preventing the consequence of lean runs.
The BVM/Stu Barr Mixture Control components are compatible with alcohol or gasoline based fuels.

$69.95

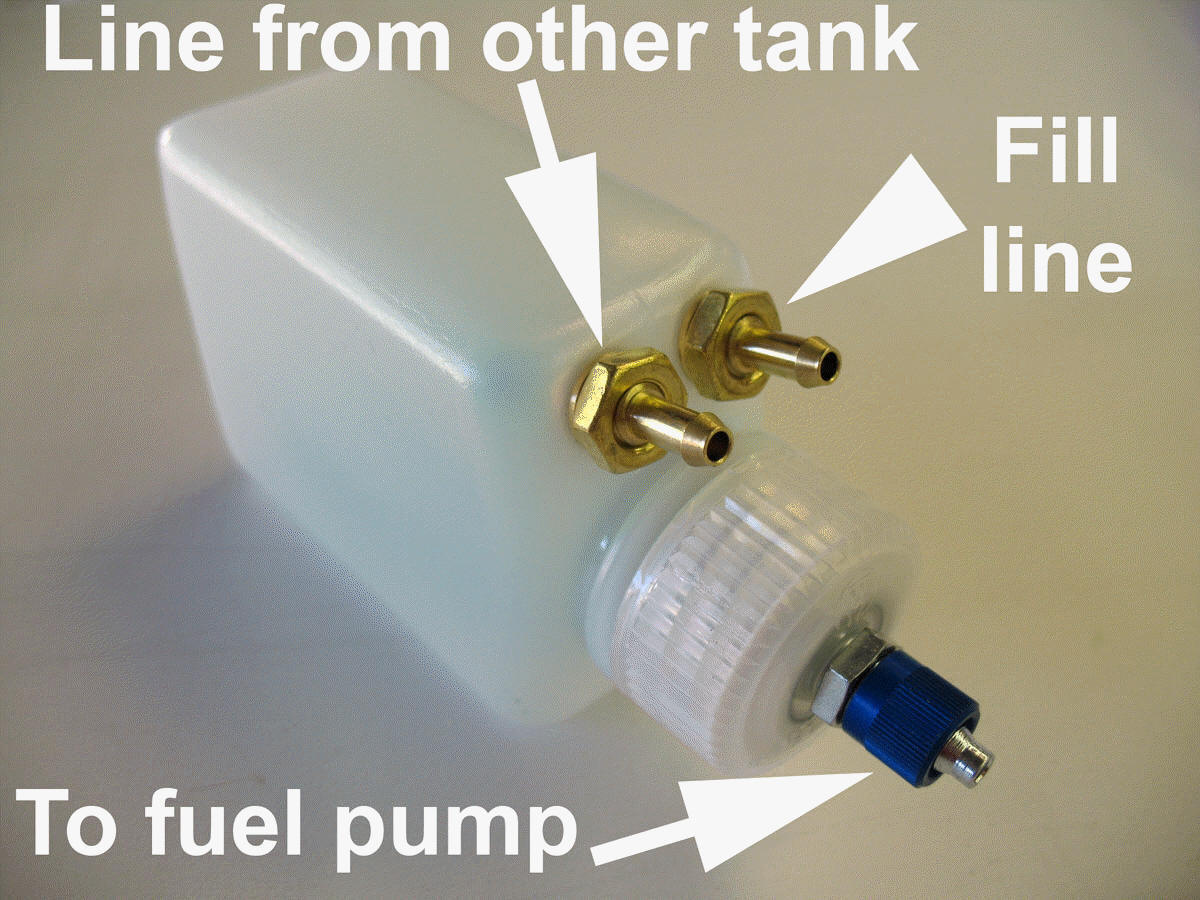

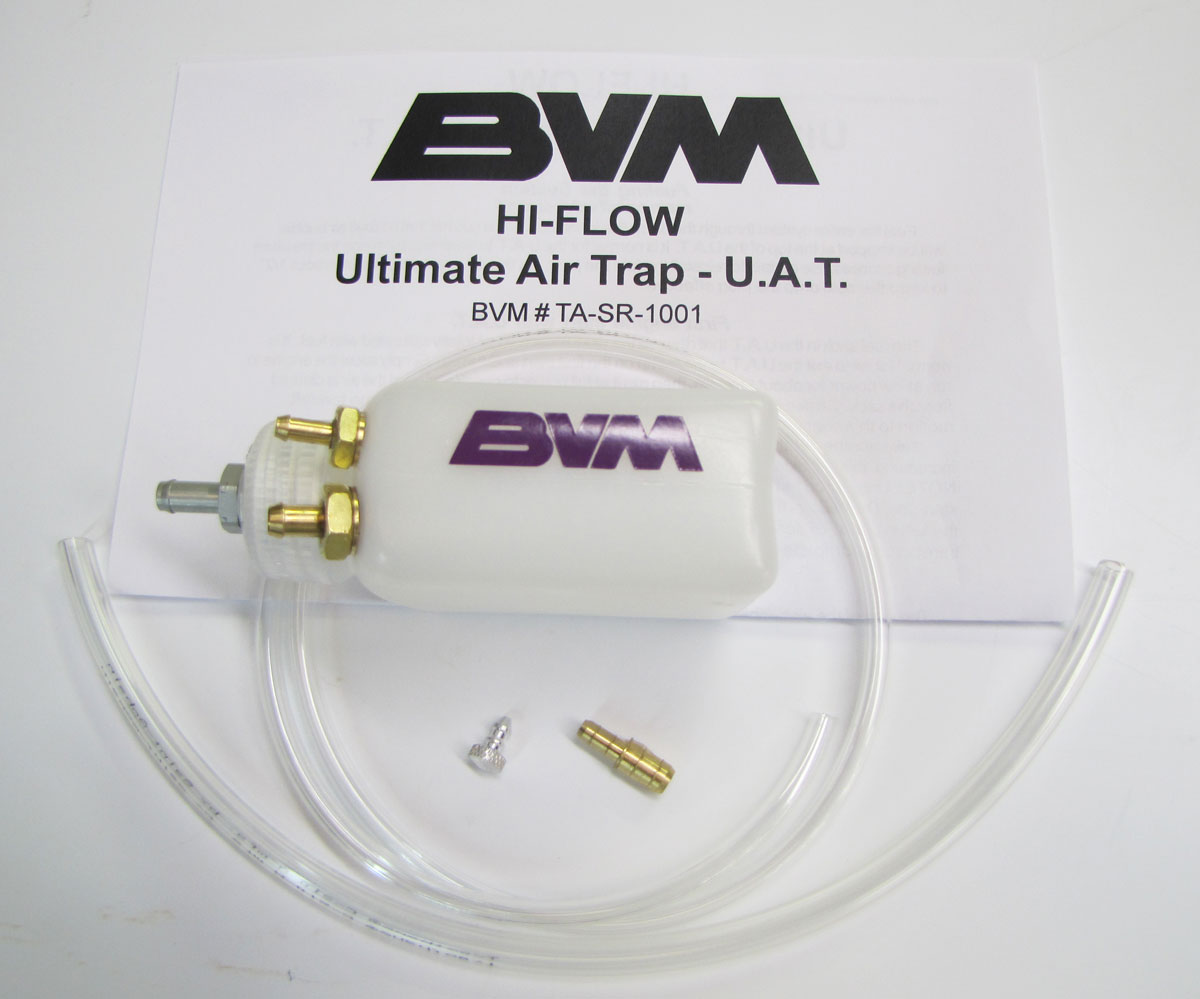

High Flow UAT

Every component, from the Brass Clunks in the tanks to the fittings on the U.A.T. have been made larger. This includes: elbows, tubing, "T's", over flow fittings.

Results

A side-by-side bench test of our standard system against the new Hi-Flow system, demonstrated 1/3rd of the fuel flow resistance
This is a very high quality product for those turbine pilots who want to eliminate the possibility of an air bubble causing a flame out. The U.A.T. is placed in series between the last fuel tank and the fuel pump. The system is filled through the 3rd line in the U.A.T.
The rectangular shaped tank can be mounted vertically or horizontally and produce the same results making it convenient to fit into just about any model and it will work with any model size turbine engine.

$84.95

For instructions click here www.bvmjets.com/Accessories/i6044.pdf

Standard UAT
Ultimate air trap hopper tank $74.95

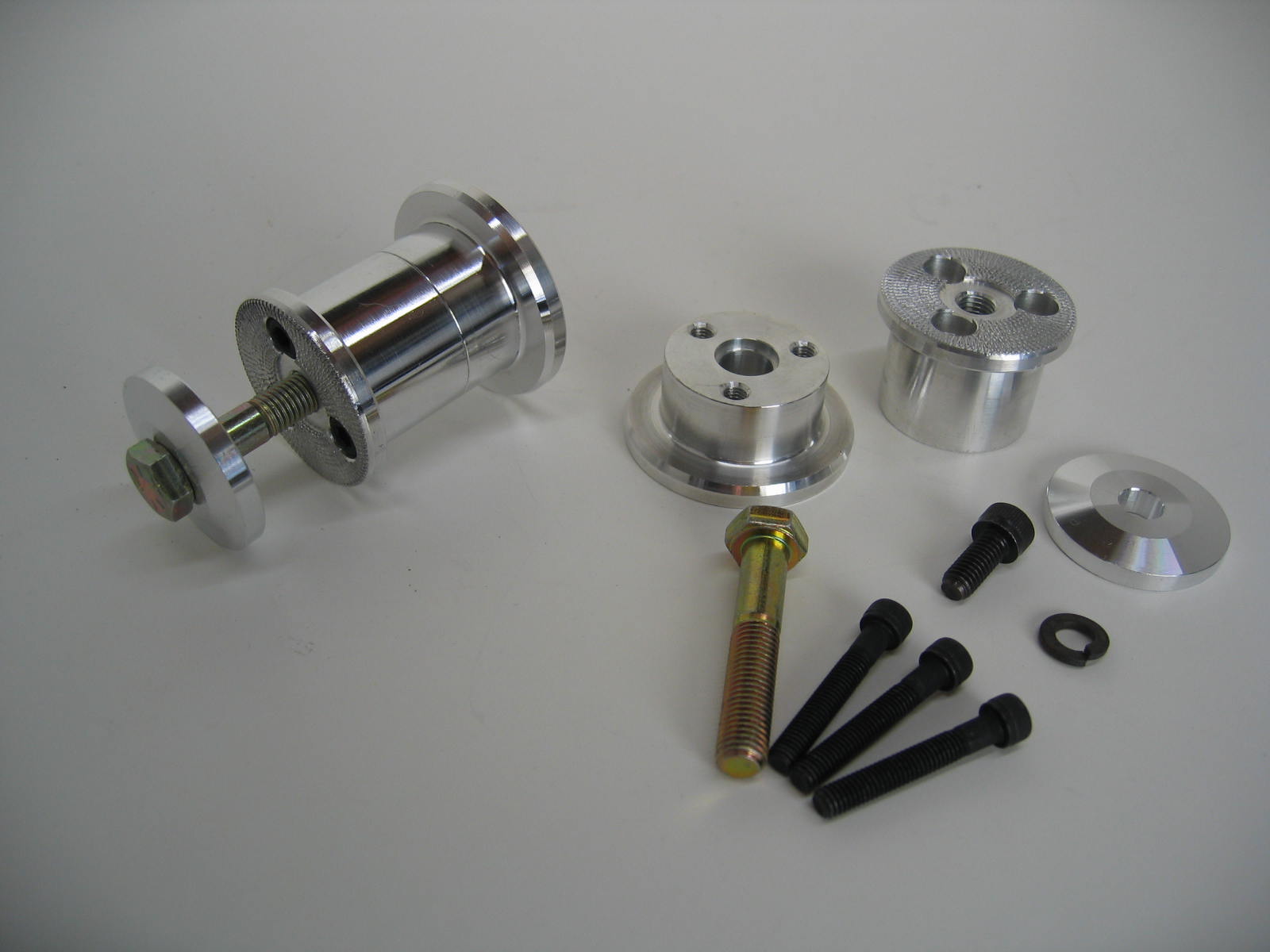

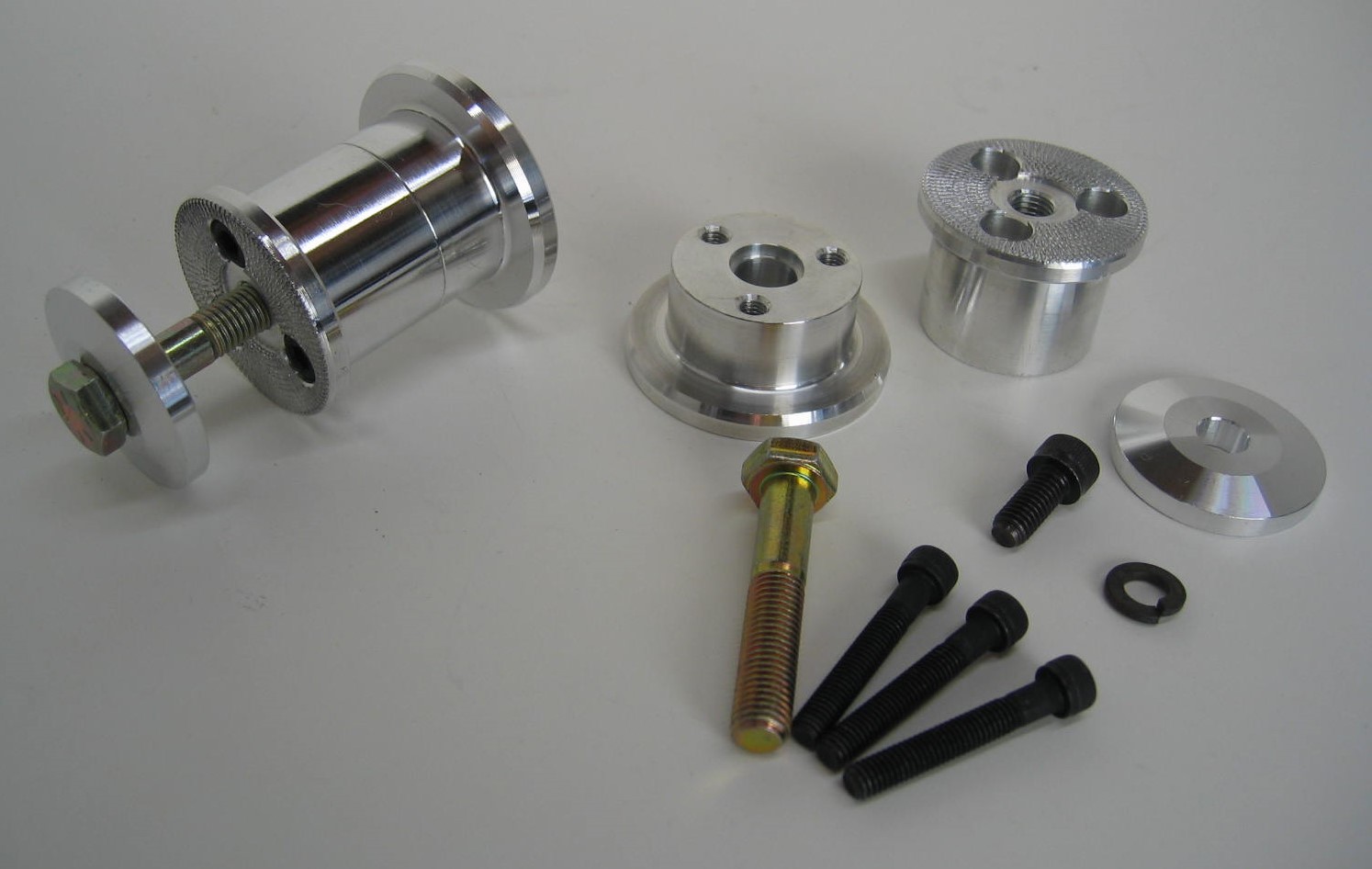

Prop Hub

Aircraft Prop Hub Replaces weak single stud Zenoah prop hub and eliminates the chance of stud breakage when over tightening the prop nut. $43.50
